<?xml version="1.0" encoding="UTF-8"?>

<mule xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:ee="http://www.mulesoft.org/schema/mule/ee/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/ee/core http://www.mulesoft.org/schema/mule/ee/core/current/mule-ee.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">

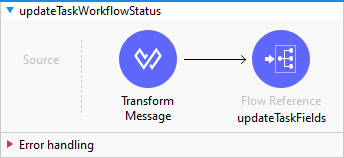

    <flow name="updateTaskWorkflowStatus" doc:id="e64a9b0e-0adf-47eb-8c9d-1400df11fbe3">
        <ee:transform doc:name="Transform Message" doc:id="4ec53f39-8f96-4f1c-aa68-da5ccb5e535f">
            <ee:message>
                <ee:set-payload><![CDATA[%dw 2.0

output application/json

---

{

    taskId : payload.taskId,

    field: "TaskStatus",

    fieldValue: payload.newWorkflowState

}]]>    </ee:set-payload>
            </ee:message>
        </ee:transform>
        <flow-ref doc:name="updateTaskFields" doc:id="379cdc5f-8806-4284-9860-dd688b1bd623" name="updateTaskFields"/>
    </flow>
    <flow name="updateTaskWorkflowActivity" doc:id="3f30cab9-3cad-4078-9abe-5858ae67d3bc">
        <ee:transform doc:name="Transform Message" doc:id="c3f7a703-bcfc-493b-a6cc-25a556709190">
            <ee:message>
                <ee:set-payload><![CDATA[%dw 2.0

output application/json

---

{

    "taskId" : payload.taskId,

    "userNameBy" : payload.userName,

    "userId" : payload.userId,

    "dateUpdated" : now(),

    "updateType" : "workflow",

    "prevWorkflowState" : payload.currentWorkflowState,

    "nextWorkflowState" : payload.newWorkflowState

}]]>    </ee:set-payload>
            </ee:message>
        </ee:transform>
        <flow-ref doc:name="updateTaskActivity" doc:id="46cb2ee9-5b99-43f7-8cf5-61a9878c0539" name="updateTaskActivity"/>
    </flow>

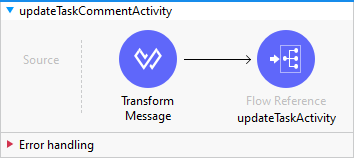

    <flow name="updateTaskCommentActivity" doc:id="01af8808-9f1e-4a8e-b992-20adb0281691">
        <ee:transform doc:name="Transform Message" doc:id="d9e0e407-898c-4bb8-b552-fffa4f253c1f">
            <ee:message>
                <ee:set-payload><![CDATA[%dw 2.0

output application/json

---

{

    "taskId" : payload.taskId,

    "userNameBy" : payload.userName,

    "userId" : payload.userId,

    "dateUpdated" : now(),

    "updateType" : "comment",

    "activityData" : payload.data,

}]]>    </ee:set-payload>
            </ee:message>
        </ee:transform>
        <flow-ref doc:name="updateTaskActivity" doc:id="dfd1e76b-923d-4355-bbac-c1f1990bc6a9" name="updateTaskActivity"/>
    </flow>
    <flow name="updateTaskAttachmentActivity" doc:id="162de245-0abf-4e2a-bc6c-09c94784a7fc">
        <ee:transform doc:name="Transform Message" doc:id="6028dccc-2a23-4223-88b8-cff90bf1c708">
            <ee:message>
                <ee:set-payload><![CDATA[%dw 2.0

output application/json

---

{

    "taskId" : payload.taskId,

    "userNameBy" : payload.userName,

    "userId" : payload.userId,

    "dateUpdated" : now(),

    "updateType" : "attachment",

    "comment" : payload.commentData,

    "fileName" : payload.fileName,

    "url" : payload.url

}]]>    </ee:set-payload>
            </ee:message>
        </ee:transform>
        <flow-ref doc:name="updateTaskActivity" doc:id="77528de2-4cb0-42bb-aba3-d650f7431e49" name="updateTaskActivity"/>
    </flow>

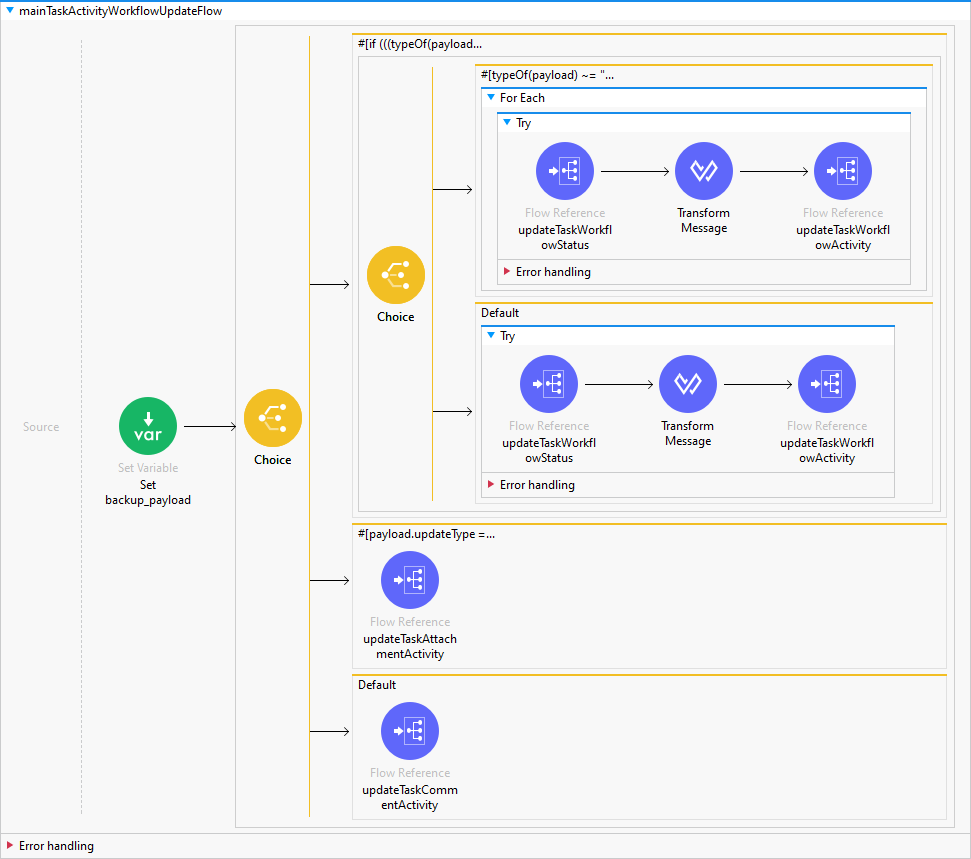

    <flow name="mainTaskActivityWorkflowUpdateFlow" doc:id="646e2031-8e50-4390-996b-bb81c3f6a2cc">
        <set-variable value="#[payload]" doc:name="Set backup_payload" doc:id="2a94f404-83f1-48d8-9df6-a9c4b80b51dc" variableName="backup_payload"/>
        <choice doc:name="Choice" doc:id="abdc1e84-4558-44ba-b928-80b6539db4d0">
            <when expression="#[if (((typeOf(payload) ~= &quot;Array&quot;) and (payload[0].updateType == &quot;workflow&quot;)) or (payload.updateType == &quot;workflow&quot;)) true else false]">
                <choice doc:name="Choice" doc:id="8666121e-53a2-4f5c-b81d-19072b9f6922">
                    <when expression="#[typeOf(payload) ~= &quot;Array&quot;]">
                        <foreach doc:name="For Each" doc:id="b191c2f7-1147-4ecf-a255-2cad6d4f725b">
                            <try doc:name="Try" doc:id="a27e4bea-de6e-4153-b94a-a84e3e3c96f6" transactionalAction="ALWAYS_BEGIN">
                                <flow-ref doc:name="updateTaskWorkflowStatus" doc:id="e0020059-cb34-4fa3-abe0-55474709bb0d" name="updateTaskWorkflowStatus"/>
                                <ee:transform doc:name="Transform Message" doc:id="bc1c5510-a2ef-4692-94f0-8a6e04d749f6">
                                    <ee:message>
                                        <ee:set-payload><![CDATA[%dw 2.0

output application/json

---

vars.backup_payload[vars.counter - 1]]]>    </ee:set-payload>
                                    </ee:message>
                                </ee:transform>
                                <flow-ref doc:name="updateTaskWorkflowActivity" doc:id="6a530122-90b2-4ca7-8ccd-ba35f9464568" name="updateTaskWorkflowActivity"/>
                            </try>
                        </foreach>
                    </when>
                    <otherwise>
                        <try doc:name="Try" doc:id="7fa5597a-0a99-4e2f-8da1-9ab846f53a69" transactionalAction="ALWAYS_BEGIN">
                            <flow-ref doc:name="updateTaskWorkflowStatus" doc:id="86623f67-a374-44ca-954f-eabd2d729172" name="updateTaskWorkflowStatus"/>
                            <ee:transform doc:name="Transform Message" doc:id="ef86aa51-3ca3-474e-90a0-c699fc38eda7">
                                <ee:message>
                                    <ee:set-payload><![CDATA[%dw 2.0

output application/json

---

vars.backup_payload]]>  </ee:set-payload>
                                </ee:message>
                            </ee:transform>
                            <flow-ref doc:name="updateTaskWorkflowActivity" doc:id="398f660e-09bc-4ef7-b834-6178fb4cc772" name="updateTaskWorkflowActivity"/>
                        </try>
                    </otherwise>
                </choice>
            </when>
            <when expression="#[payload.updateType == &quot;attachment&quot;]">
                <flow-ref doc:name="updateTaskAttachmentActivity" doc:id="838777b6-3fd1-4d78-91cc-ecbca7151021" name="updateTaskAttachmentActivity"/>
            </when>
            <otherwise>
                <flow-ref doc:name="updateTaskCommentActivity" doc:id="929b2cb6-f06a-4474-9f93-580654576b5b" name="updateTaskCommentActivity"/>
            </otherwise>
        </choice>
    </flow>
</mule>
